Descripción
Overview

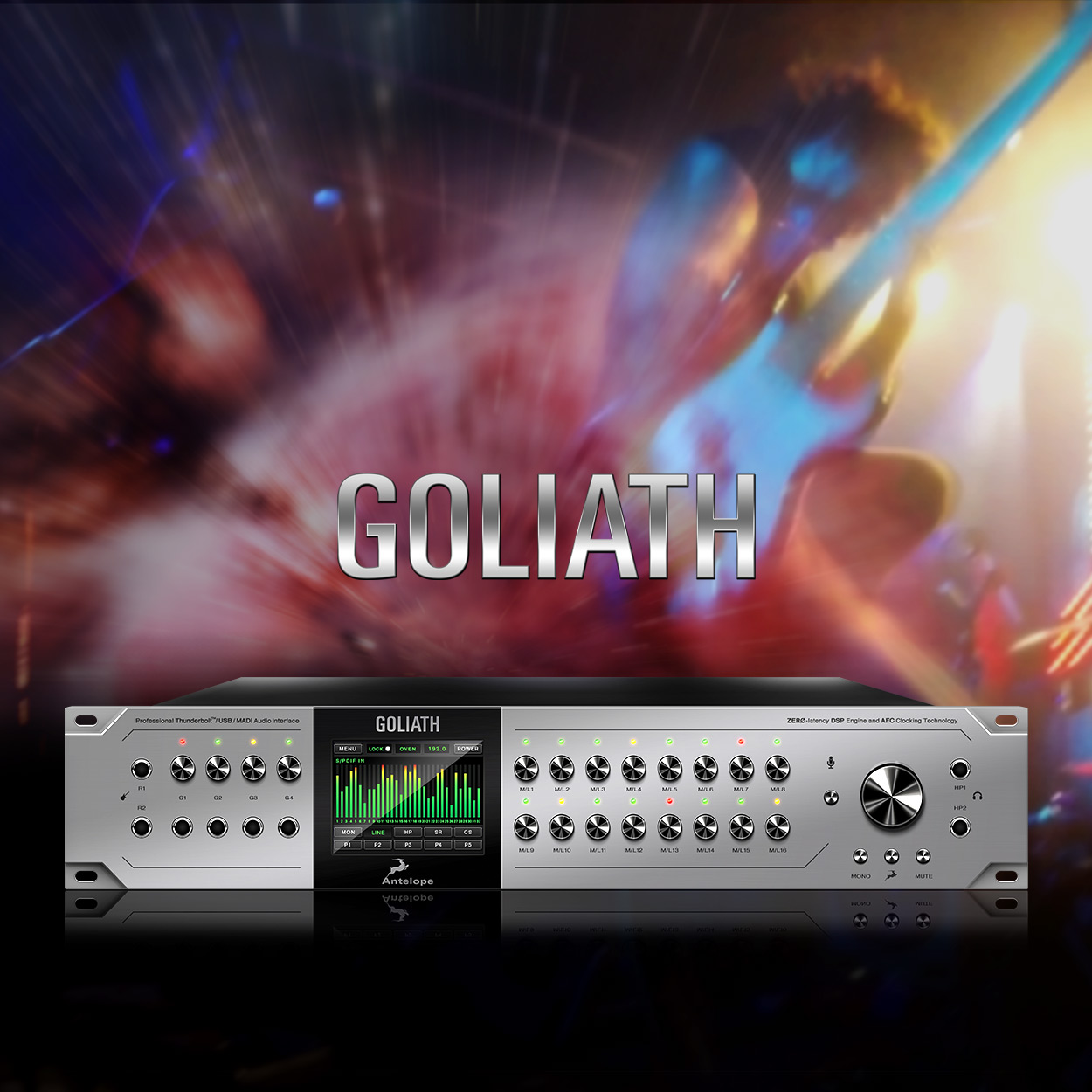

Meet the most powerful audio interface on the market
Offering the most I/O’s, Goliath is the result of Antelope’s 20+ years of experience in digital audio, innovative clocking technologies and analog circuit design.
Connectable via blazing-fast Thunderbolt™, USB & MADI, Goliath houses a total of 36 analog ins and 32 analog outs. Antelope’s most powerful audio interface comes with an array of hardware-based audio effects, among which vintage guitar amps & cabs, AuraVerb reverb, legendary EQ and compressor emulations. Featuring our world-renowned Acoustically Focused Clocking technology, Goliath merges digital clarity and analog realism like no other audio interface on the market.
Features
16 MIC PRES
16 Class-A Mic preamps. Hi-Z, Mic & Line ins
ZERO LATENCY
64 channels I/O simultaneous streaming, multiple mixers and effects processing
PRO GUITAR EFFECTS
Hardware-based effects for next level guitar amp modeling
PRISTINE AD/DA
24-bit, 192 kHz audio and Antelope Audio’s signature pristine conversion
64-BIT ACOUSTICALLY FOCUSED CLOCKING
4th Generation Antelope Audio jitter management technology
CONVENIENT CONTROL
Intuitive desktop and mobile apps and front panel touch screen
DESCRIPTION
THE SOUND YOU HAVE ALWAYS DREAMED OF
Flawless clocking and unique analog circuitry brings pro sound to a new level.
At Antelope Audio we love to say that best clock = best sound. So, it’s no surprise our acclaimed 4th Gen Acoustically Focused Clocking (AFC) jitter management algorithm is in charge of Goliath’s flawless clocking. The audio interface features the oven-controlled crystal oscillator you know from Antelope’s signature crystal-based master clocks. For optimum detail and sound stage, Goliath can be additionally synced to the extremely accurate Rubidium Atomic Clock – 10MX. It can be used as a master clock for two other devices via Word Clock Outs on BNC.
REALISTIC VINTAGE FX
Process multiple zero latency mixes and get crazy creative with Goliath’s custom hardware-based effects.
Goliath employs Antelope’s powerful FPGA-based DSP engine, a massive platform allowing you to process four zero latency mixers with custom effects. These include the stunning AuraVerb reverb and several modern and vintage hardware EQ and compressor models. Antelope’s new RealModel technology create the most accurate modeling to vividly recreate not only the true sound of classic analog gear but its behavior and feel as well. Stacks of effects can be combined in custom FX Chains and saved as Presets. Guitar players will surely fall in love with the Goliath, because all guitar amp and cabs simulations that come up with Goliad were developed in a partnership with leaders in guitar software Overloud Audio Tools.
MOST MIC/LINE CHANNELS
64 channels via Thunderbolt™ can be routed to a vast selection of digital and Analog I/O options, including MADI, AES, ADAT, and S/PDIF.
Goliath offers 36 Analog Inputs and 32 Analog Outputs with pristine AD/DA converters. These include 4 superb Instrument DI’s, 2 transformer Reamp Outs, 2 Headphone Outs with integrated Talkback on the front, and 16-Channels of Class-A Mic Preamps, 2 sets of Stereo Inserts and a pair of mastering grade Monitor Outs on the back. The DB25 connectors feature 24 Outputs (1-8 can be level controlled for Surround Sound Mixing) and 16 additional Line Inputs, making Goliath an attractive solution for Hardware Inserts and Summing. Even more Analog I/O Channels can be added by connecting Antelope’s Orion32 or Orion32+ via MADI for a total of 64 Channels of Analog I/O simultaneously.
Check out below all the connectivity options.
TOUCH & CONTROL
Reinvent your studio experience with Goliath’s advanced control options.
All Goliath functions are accessible via its intuitive, high-resolution touch screeen. All features of the audio interface can be also accessed via the OS X and Windows compatible Software Control Panel. Just like all new breed Antelope Audio devices. the Goliath follows our networking control concept. This means you can now access all Goliath features from multiple computers in the same network. Android and iOS mobile apps are also available for convenient remote control, both for the producer and the recording artists.
All the control at your fingertips
Using our Windows or Mac OS X Control Panels, you have the Goliath under total control. As if that wasn’t enough, we also extend the possibility to control the Goliath through our Android or iPad apps, available at Google Play or App Store.
VIDEO TUTORIALS
Connectivity
Specifications
-
-
Analog Inputs
-
16 x Line inputs on two D-SUB 25, +20 dBu max, 11.2 kOhms
16 x Mic / Line universal inputs on XLR combos on the rear (first 4 can be used for instruments also)
4 x Instrument (HiZ) inputs on TRS 1/4 jacks on front
-
-
Analog Inserts
-
2 x Inserts on TRS 1/4 jacks (dedicated to rear universal inputs 1, 2)
-
-
Digital Inputs
-
2 x Fiber Optic MADI (up to 64CH each)
2 x ADAT (up to 16CH)
8 x AES/EBU on D-SUB 25 (16CHs)
1 x S/PDIF
-
-
Word Clock Input
-
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
-
-
Atomic Clock Input
-
1 x 10M Input @ 75 Ohms 1Vpp on BNC
-
-
Analog Outputs
-
16 x Line outs on two D-SUB 25, +20dBu, 56 Ohms
8 x Monitor outs on one D-SUB 25, +20dBu, 56 Ohms
2 x Main Monitor outs on TRS 1/4 jacks
2 x Stereo Headphone outs on TRS
2 x ReAmp outs on TRS
-
-
Digital Outputs
-
2 x Fiber Optic MADI
2 x ADAT
8 x AES/EBU on D-SUB 25 (16CHs)
1 x S/PDIF
-
-
Word Clock Outputs
-
2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
-
-
Thunderbolt
-
1 x Thunderbolt (64 channels I/O)
-
-
D/A Monitor Converter
-
Main Monitor Dynamic Range: 127 dB; THD + N: -108 dB
Dynamic Range: 118 dB; THD + N: -98 dB
-
-
D/A Converter
-
Dynamic Range: 118 dB; THD + N: -98 dB
-
-
A/D Converter
-
Dynamic Range: 120 dB; THD + N: -110 dB
-
-
Clocking System
-
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
-
-
Clocking Stability
-
<+/-0.02 ppm, oven controlled at 64.5°C/ 148.1°F
-
-
Clock Aging
-
<1 ppm per year
-
-
Clock Calibration
-
<+/-0.001 ppm
-
-
Sample Rates
-
32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
-
-
Operating Temperature
-
0-50°C/32-122°F
-
-
Weight
-
6.8 kg/ 15 lbs approx
-
-
Dimensions (approx.)
-
Width: 483mm /19”
Height: 81mm / 3.2”
Depth: 279mm / 11”
-
-
Power Supply
-
AC Universal input ~95-245 V
Power Consumption
40 Watts Max
-
-
Mic Pre
-
Gain: 0, 10 – 65 dB
THD + N: -108 dB
-
-
USB I/O
-
1 x USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz, 32 channels I/O, Type B
FEATURED REVIEWS
User stories
Downloads
FAQ’s
The Goliath drivers are designed in a way that the unit locks to your DAW once it is started. That is the reason it displays “USB”. In this mode you can change settings from your DAW project (sample rate, buffer size etc.) and since the unit is locked, it will follow any change made in the project. In USB mode the unit still uses its own clock. When in this mode you cannot switch between different presets.
MIDI controllers cannot be used with the Goliath Control Panel.
